Specifications:

Product features:

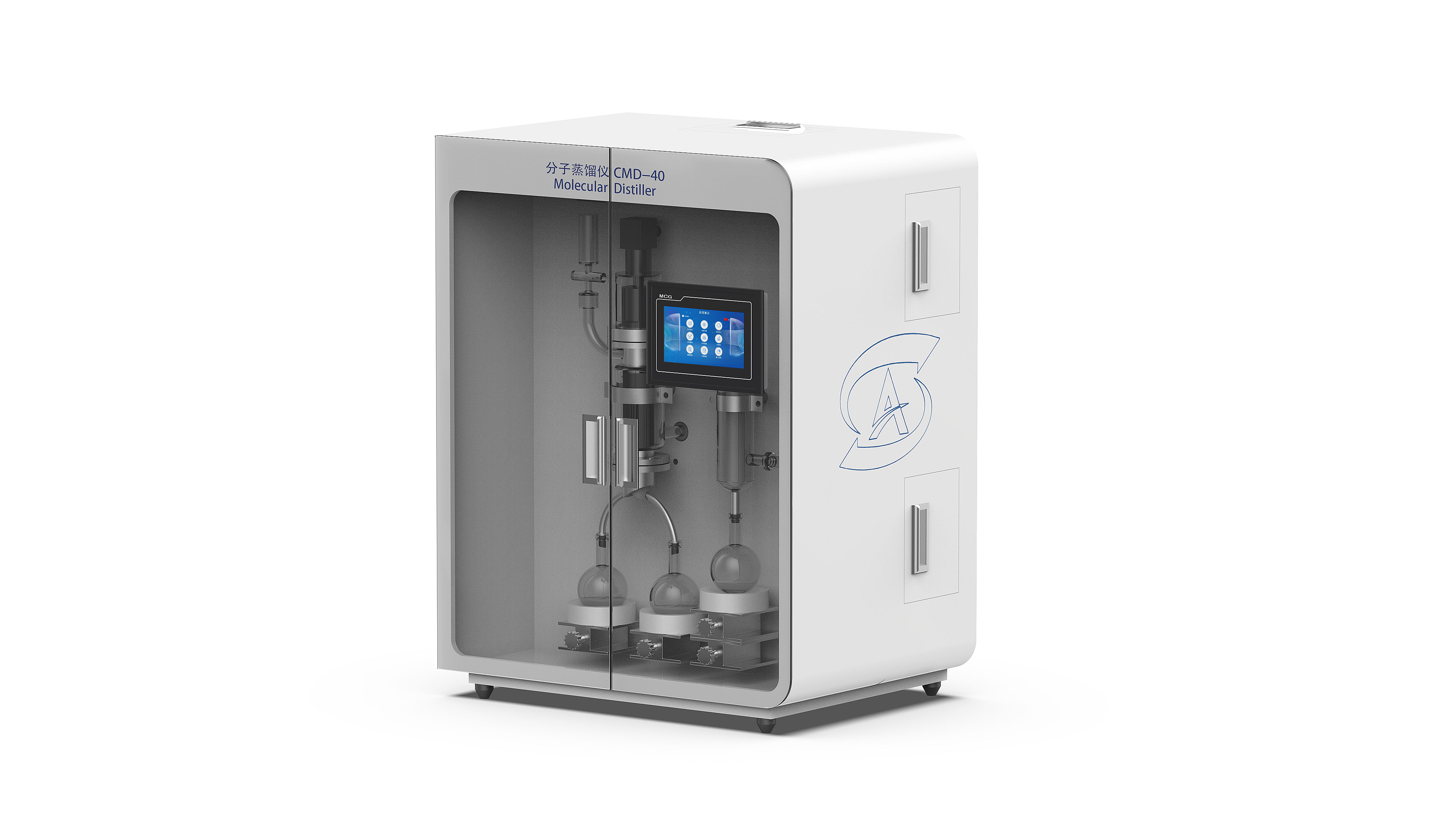

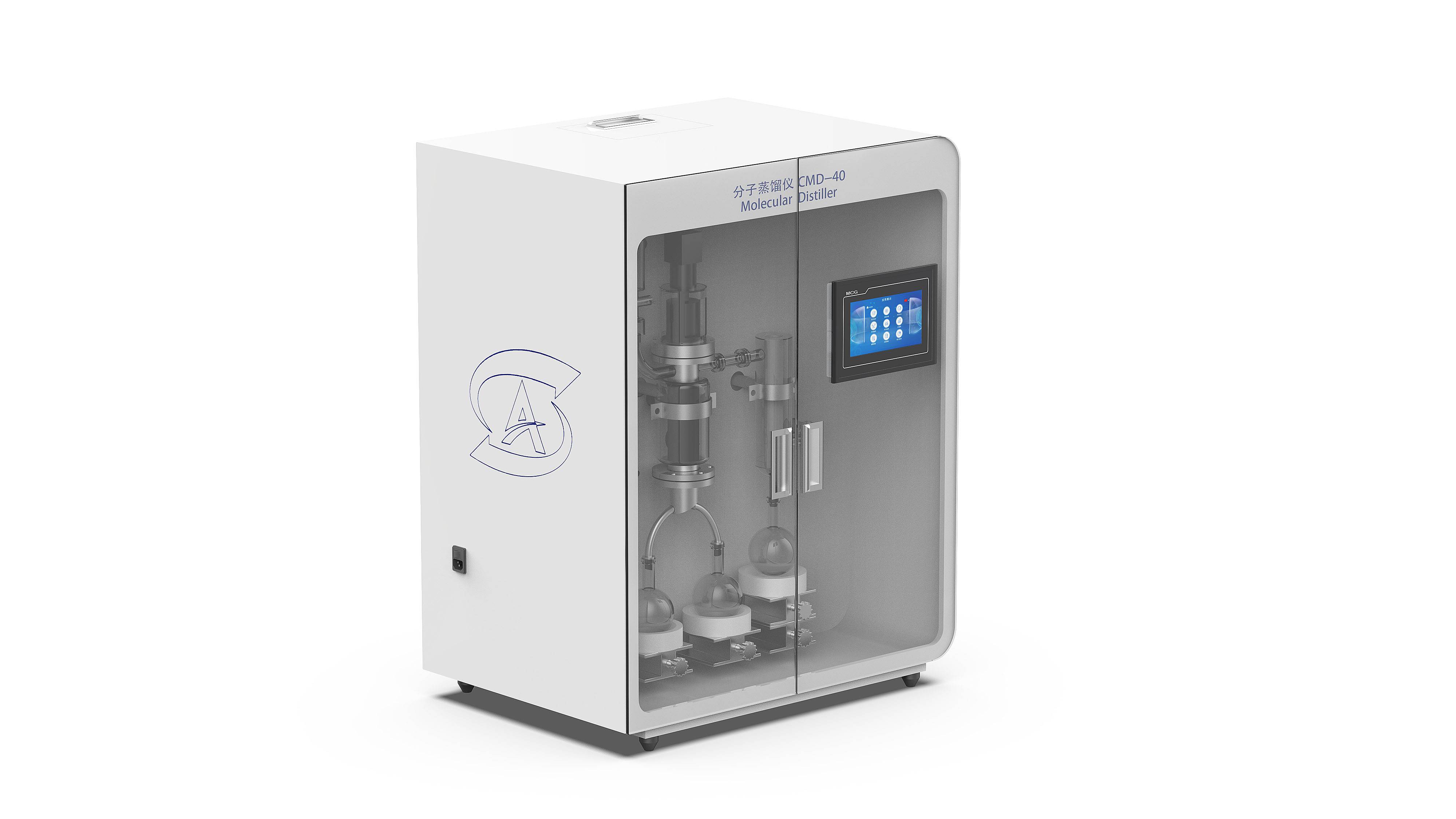

Overall design: integrated design, desktop placement, vacuum pump built-in, oil bath built-in, no lampblack pollution;

Operation mode: 7-inch touch screen operation, software control, easy to operate;

Software interface: real-time display and control of temperature, vacuum degree, rotation speed and other parameters;

Main tank design: double-layer high borosilicate glass tank, easy to observe, easy to remove, stainless steel material is optional;

Heating temperature: room temperature-280℃, built-in closed oil bath heating, no lampblack pollution;

Vacuum range: <0.1Pa (higher vacuum is optional), vacuum pump is built-in, diffusion pump is optional;

Cold trap design: built-in design, standard with double-layer high borosilicate glass cold trap, can add liquid nitrogen or dry ice, -50℃ compression mechanism cold cold trap is optional;

Speed range: using magnetic coupling motor control, speed 0-200r / m adjustable, adjustment accuracy: 1 r/min;

 Membranation: adopt scraping film or roller centrifugal film design to ensure that the film thickness is thinner;

Case design: strong anti-corrosion box, transparent acrylic door design, does not affect the observation, save space.

Standard accessories:

3 meters of drainage pipeline;

High-temperature resistant and thermal conductive silicone oil 2L;

1 feeding tank, 2 collection bottles, 1 cold trap;

One power cable;

One set of installation tools;

User manual and use guide;

after-sale service:

One-year quality assurance and lifelong technical support after acceptance;
