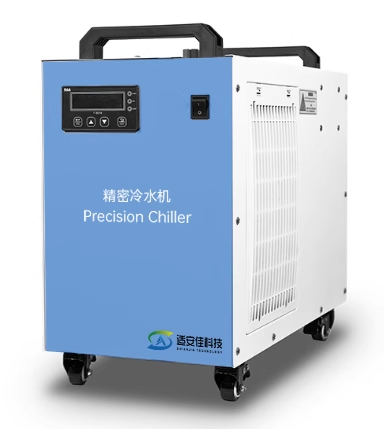

Precision chiller SCH-10/20/30/50
This machine is refrigerated by a compressor, and then heat exchange with water to reduce the temperature of the water, and sent out through a circulating pump. At the same time, the temperature controller is used for temperature control, and it has three functions: constant temperature, cooling, and circulation.
venice
Service Hotline

400-8866-090

  • Product Overview
  • Product Characteristics

    • Product characteristics

    technical parameter:

    Constant temperature range: 5~35℃, temperature display resolution of 0.1℃;

    Temperature control accuracy: constant temperature fluctuation of ± 0.1℃ and ± 0.3℃, two kinds of optional;

    Refrigeration capacity: 20℃ room temperature 1000-5000W;

    Circulating pump: head: 25m, circulating pump flow: 15-25 L/min;

    Water tank capacity: 6-14L, continuous working mode;

    Intake and outlet: 1 / 2 inch, can plug Ø 10, optional other sizes;

     Power supply requirements: AC220V, 50Hz, 10A;

    Case design: length, width and height of 58X29X52CM, small area, strong corrosion-resistant box.

    Advantages and characteristics:
    1. Temperature, pressure and water level are displayed as the standard configuration;

    2、Dynamic thermostatic control system, fast response, small thermostatic fluctuation;

    3、Key components of refrigeration system such as compressor and circulating fan adopt well-known brand products;

    4、 Covering a small area, easy to move, cost-effective, suitable for researchers;

    5、It can be customized according to the user's needs.

    Selection form:

    model

    temperature range

    ℃

    refrigerating output

    W@20℃

    Water tank volume

    L

    maximumflow

    L/min

    Interface size

    Rc

    instruments weight

    Kg

    outline dimension

    W*D*H mm

    SCD-10

    5-35℃

    1000

    6

    15

    1/2

    25

    290X580X520

    SCD-20

    5-35℃

    2000

    6

    15

    1/2

    25

    290X580X520

    SCD-30

    5-35℃

    3000

    14

    25

    1/2

    55

    470X670X890

    SCD-50

    5-35℃

    5000

    14

    25

    1/2

    58

    470X670X890




    1. Temperature, pressure and water level are displayed as standard configurations;

    2. Dynamic constant temperature control system, fast response, small constant temperature fluctuation;

    3. The key components of the refrigeration system, such as compressors and circulating fans, adopt well-known brand products;

    4. It occupies a very small area, is easy to move, cost-effective, and suitable for scientific researchers;

    5. It can be customized according to user needs.
